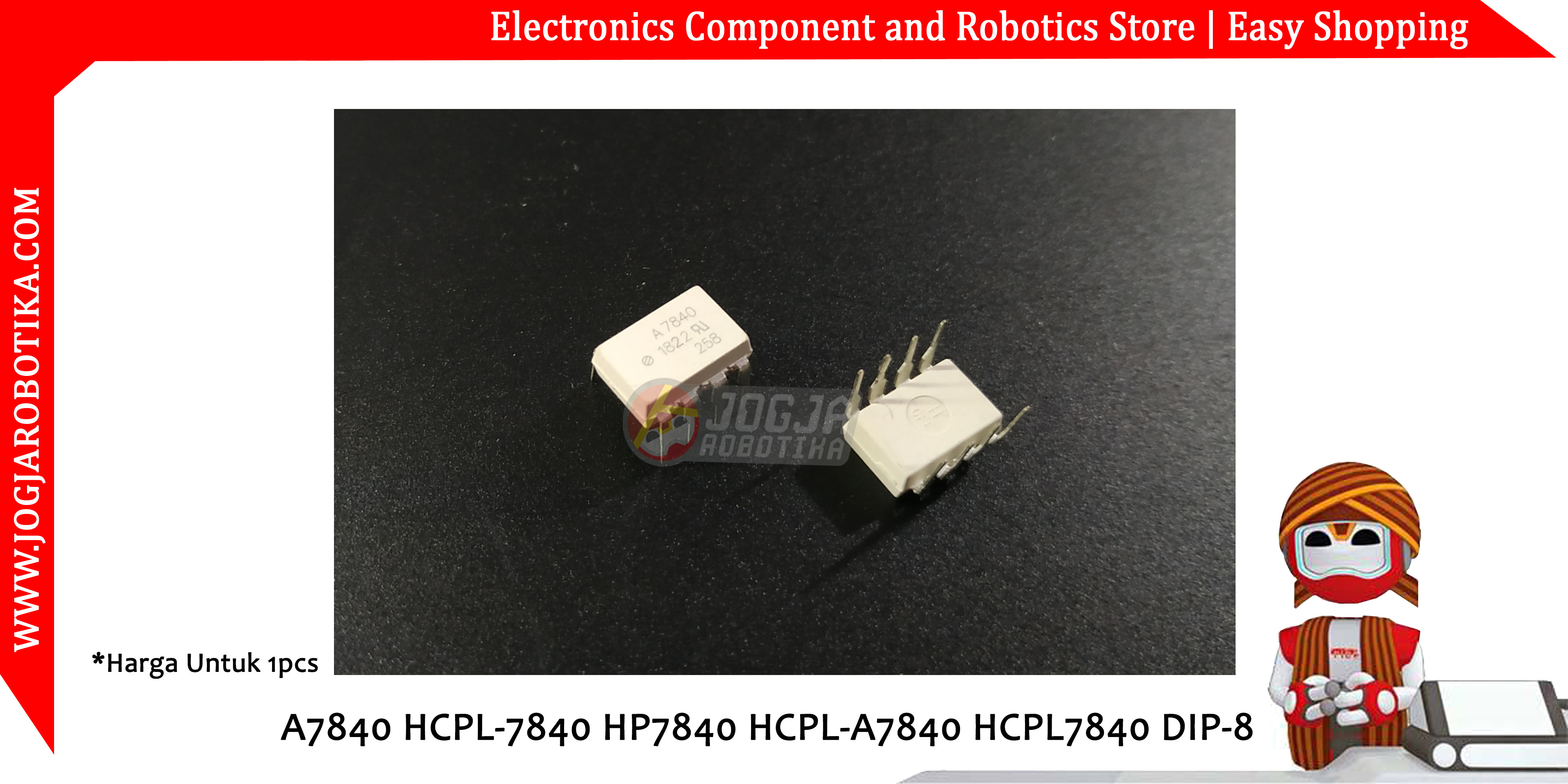

A7840 HCPL-7840 HP7840 HCPL-A7840 HCPL7840 DIP-8
Referensi
P621
Stok 54
Rp. 26.000
Diskon Rp. 1.000 berlaku mulai pembelian 10 pcs.
A7840 HCPL-7840 HP7840 HCPL-A7840 HCPL7840 DIP-8
Analog Isolation Amplifier
Features:
- 15 kV/ms Common-Mode Rejection at VCM = 1000 V
- Compact, Auto-Insertable Standard 8-pin DIP Package
- 0.00025 V/V/ degrees C Gain Drift vs. Temperature
- 0.3 mV Input Offset Voltage
- 100 kHz Bandwidth
- 0.004% Nonlinearity
- Worldwide Safety Approval: UL 1577 (3750 Vrms/1 min.) and CSA (pending), IEC/EN/DIN EN 60747-5-2 (option 060 only)
- Advanced Sigma-Delta (S-D) A/D Converter Technology
- Fully Differential Circuit Topology
- 0.8 mm CMOS IC Technology
